Характеристики
Описание товара
• 2,100 users, user data can be transferred

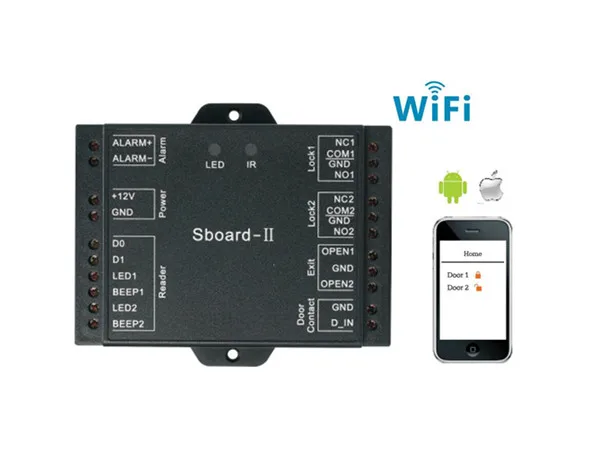

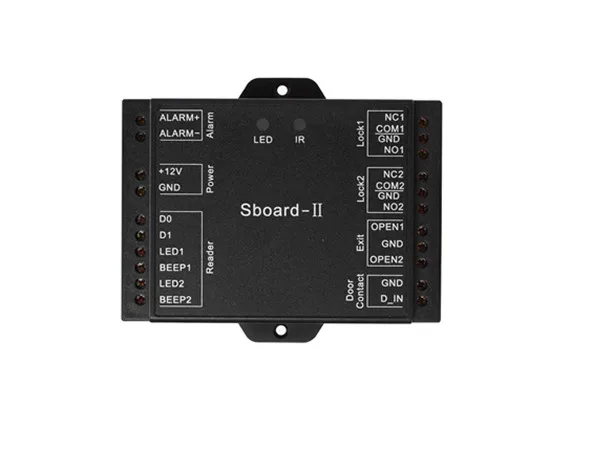

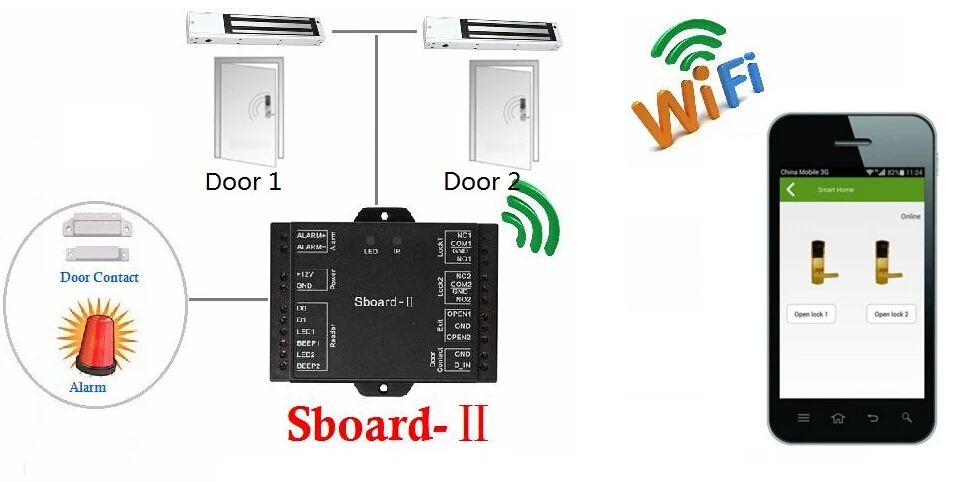

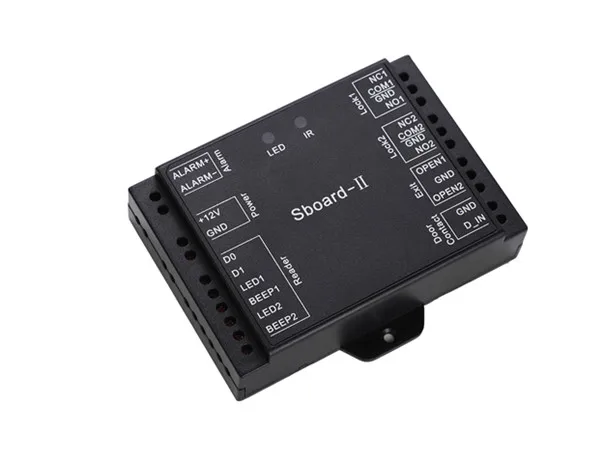

• Multi access modes: Card, Card or PIN, Card with PIN and multi Cards/PINs• Can connect with any reader with Wiegand 26~37 bits output• Can connect with any keypad reader with 4bits, 8bits (ASCII), or 10bits Virtual number output• Support Master Card function• Support set principal card• Can communnicate with mobile by Wifi/GPRS• Remotely open the door within your home network or remote from anywhere you can get internet access with your smartphone or tablet Specifications:Model No. | Sboard-II |
Item Name | Mini Two-door Controller |
User Capacity | 2,100 |
Zone 1 | 2,000 |
Zone 2 | 100 |
Operating Voltage | 9~24V DC |
Idle Current | <30mA |
Idle Current (With Wifi) | <100Ma |
Relay | |
Adjustable Relay Output Time | 1~99 Seconds (5 seconds default) |
Lock Output Load | 10 Amp Maximum |
Wiegand Interface | |
Input | Wiegand 26~37 bits |
Output | Wiegand 26~37 bits (for user transfer) |
Environment | Indoor |
Operating Temperature | -40° ~ 60° (-40°F ~ 140°F) |
Operating Humidity | 0~90%RH |
Physical | ABS Shell |
Colour | Black |
Dimensions | L100 x W86 x D26(mm) |
Unit Weight | 110g |
Shipping Weight | 180g |
