Зарядное устройство для аккумулятора велосипеда 54.6V 7A, литий-ионный 48В, умное интеллектуальное для зарядки аккумуляторов на 10Ач, 15Ач и 20Ач, 13S.

Product Name

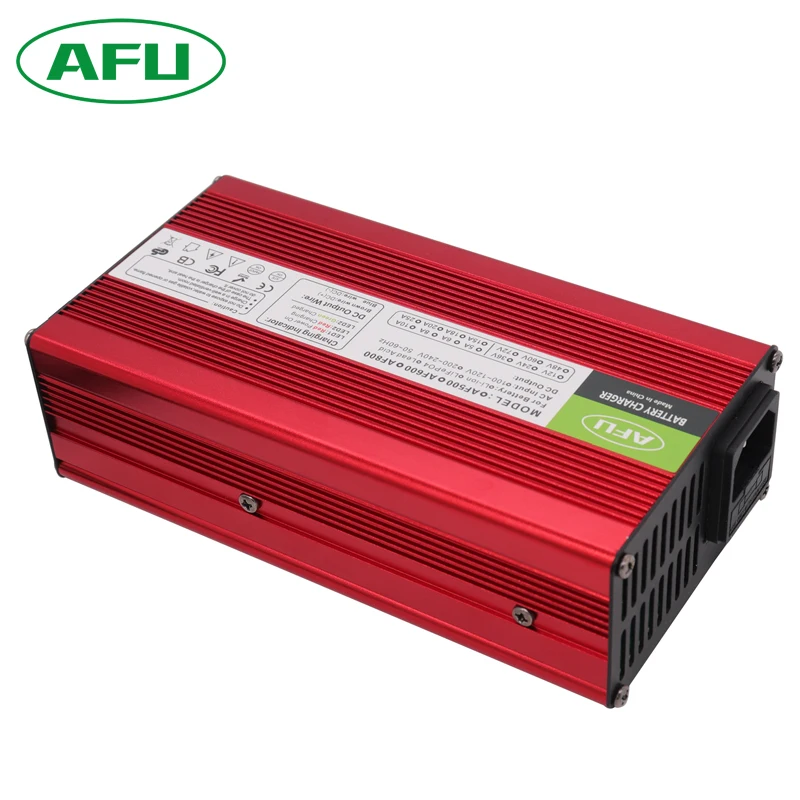

AF500 BATTERY CHARGER

Brand Name

 AFU

Model Number

 AF500-54607R

AC Input Voltage

100~240Vac

Frequency

50~60HZ

DC Output Voltage

54.6 Volt

DC Output Current

7 Amp

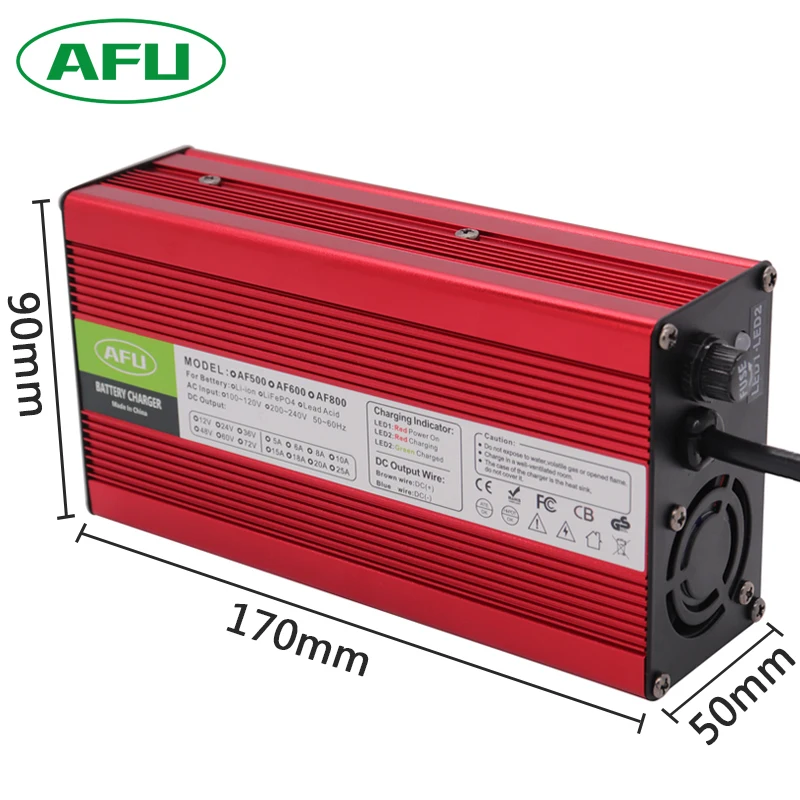

Dimension

170*90*50mm

Net Weight

1.2KG

Case Color

Red

Case Material

        Aluminum case

Suitable Battery Type

13S 48V Li-ion Lipo Battery (S=Series Connection)

Efficiency

≥85%

Charging Mode

Three-stage Intelligent Charging Mode: Constant Current~Constant Voltage~Trickle(Floating Charge) to Ensure Battery Fully Charged (Floating Charge is when Lead Acid charger)

Charging Indicator

Red and Green, double color instructions, Red logo charging, Green logo finished or standby

Operating/Storage

Conditions

Operating:Ambient temperature: -20~+40℃; RH: 5~95%; Max. altitude: 10000  meter

Storage:Ambient temperature: -40~+70℃; RH: 0~95%; Max. altitude: 20000 meters

Various Protection

Over Current, Over Voltage, Over temperature, Short Circuit, Reverse Polarity, shut off or trickle and anti-reverse charge

Our Advantage

Safety certifications CE, RoHS, FCC Directive-compliant, Intelligent IC control ,full automatic transition of CC,CV and Float/Cut-off rickle, meet the demands for different Curve.

Aluminum case, Robust, Elegant, Safe, Stable, Reliable

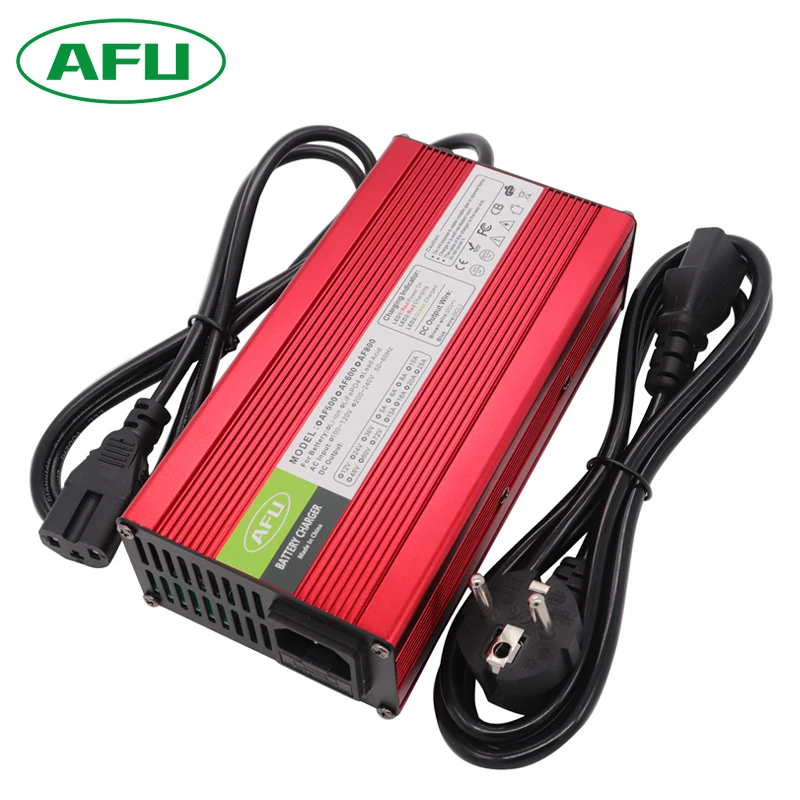

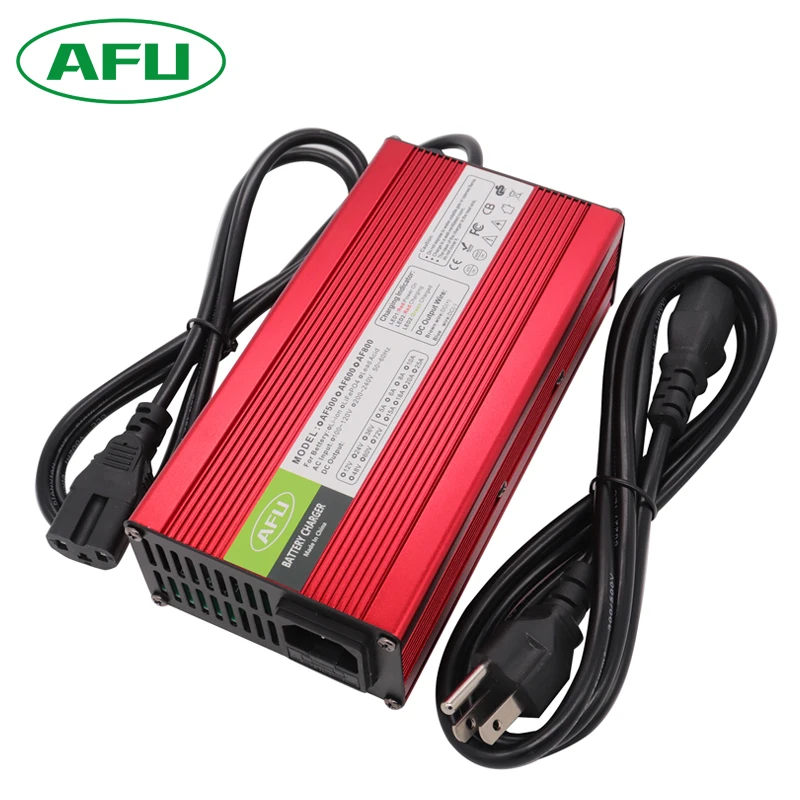

Package Contents

*1xbattery charger

*1xInput Wire

*1xUser Manual

This battery charger is your affordable necessity without sacrificing performance.

It features an integrated MCU and PWM for power control.
